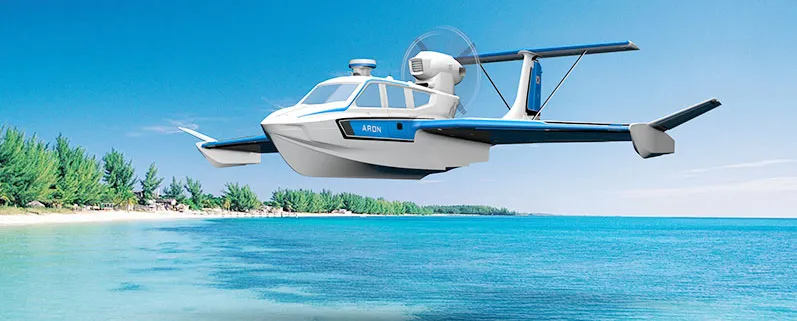

Aron M80 Flying Boat
Technological Powerhouse & Eco-conscious
It achieves remarkable fuel efficiency using up to 50% less fuel than helicopters & 30% less than boats.
Applications
Aron’s M Series Has Been Proven to Be Safe, Reliable, and Effcient
Aron Flying Ship Ltd., contributes to the development of maritime rescue, marine protection, and maritime transportation around the world. We are constantly striving to create value to secure future growth engines.
Technology
Revolutionize Your Marine and Air Transport
A marine vessel that utilizes an air cushion created by the WIG effect to cruise over the water's surface. [ WIG(Wing-In Ground) Effect ] The phenomenon in which increased lift and decreased drag is created by aerodynamics when an object flies close to the water or ground surface.

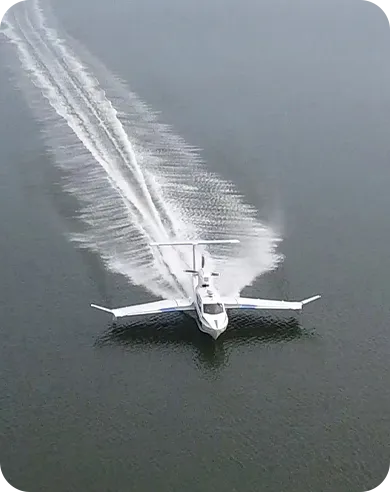

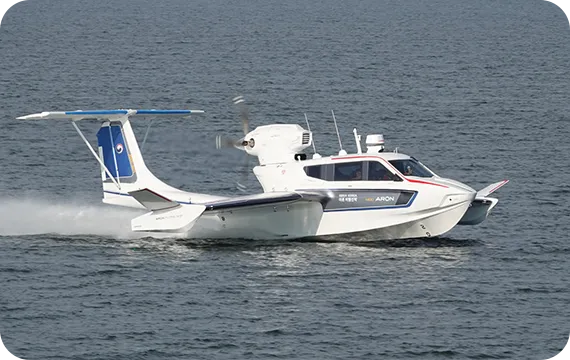

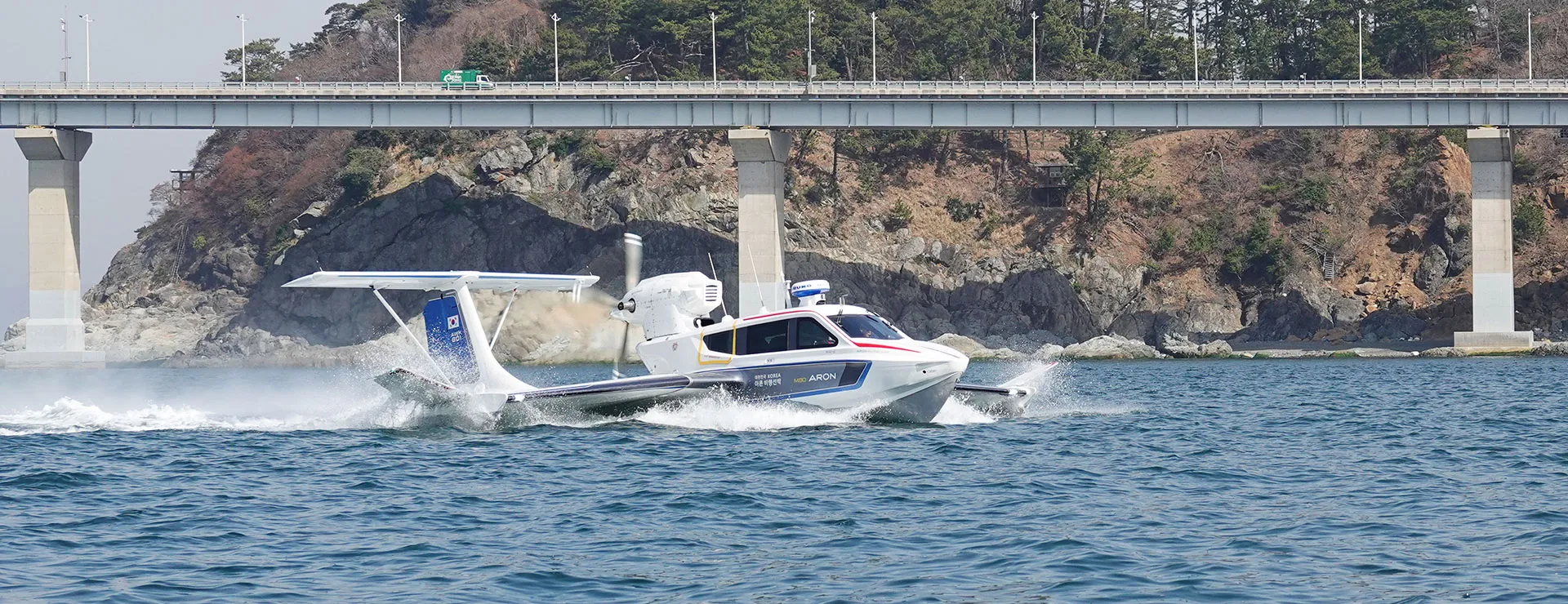

Ship Mode Operation
- 1~54knots (~100km/h)
- Max. wave height (for take-off & landing) 5.9ft(1.8m)
- Low-speed operation in ports using side motors

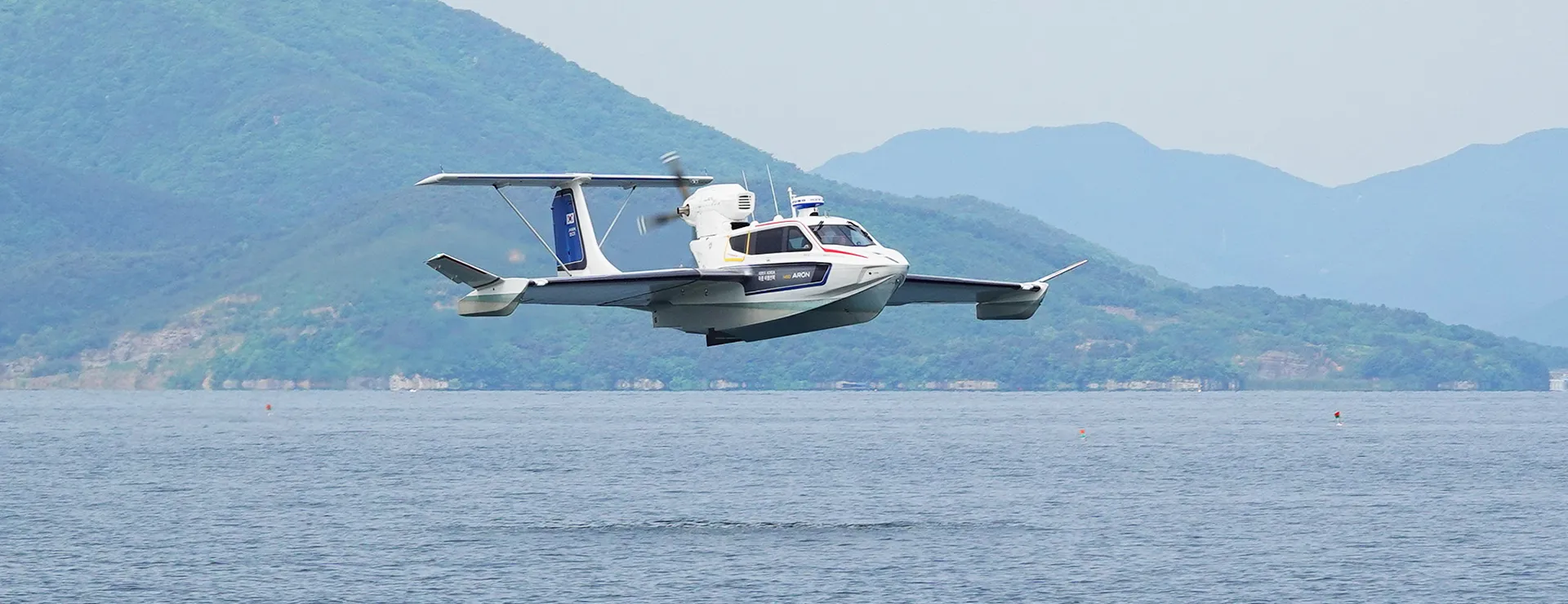

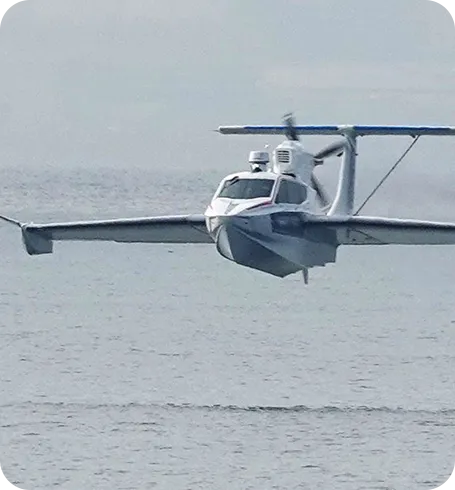

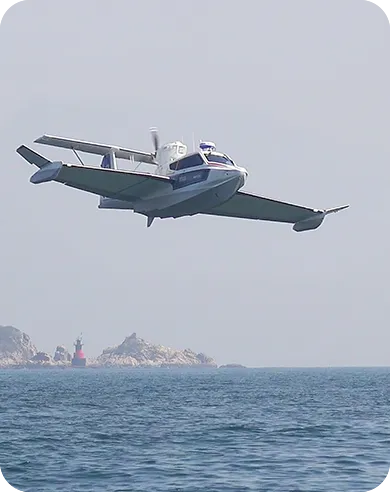

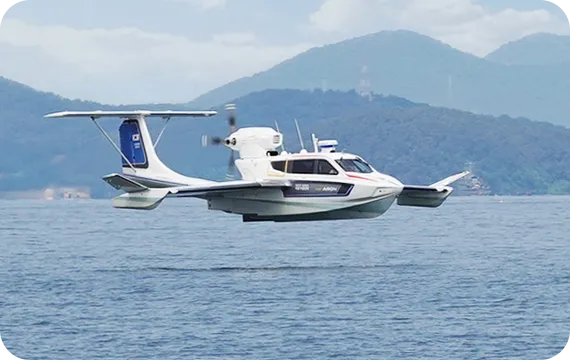

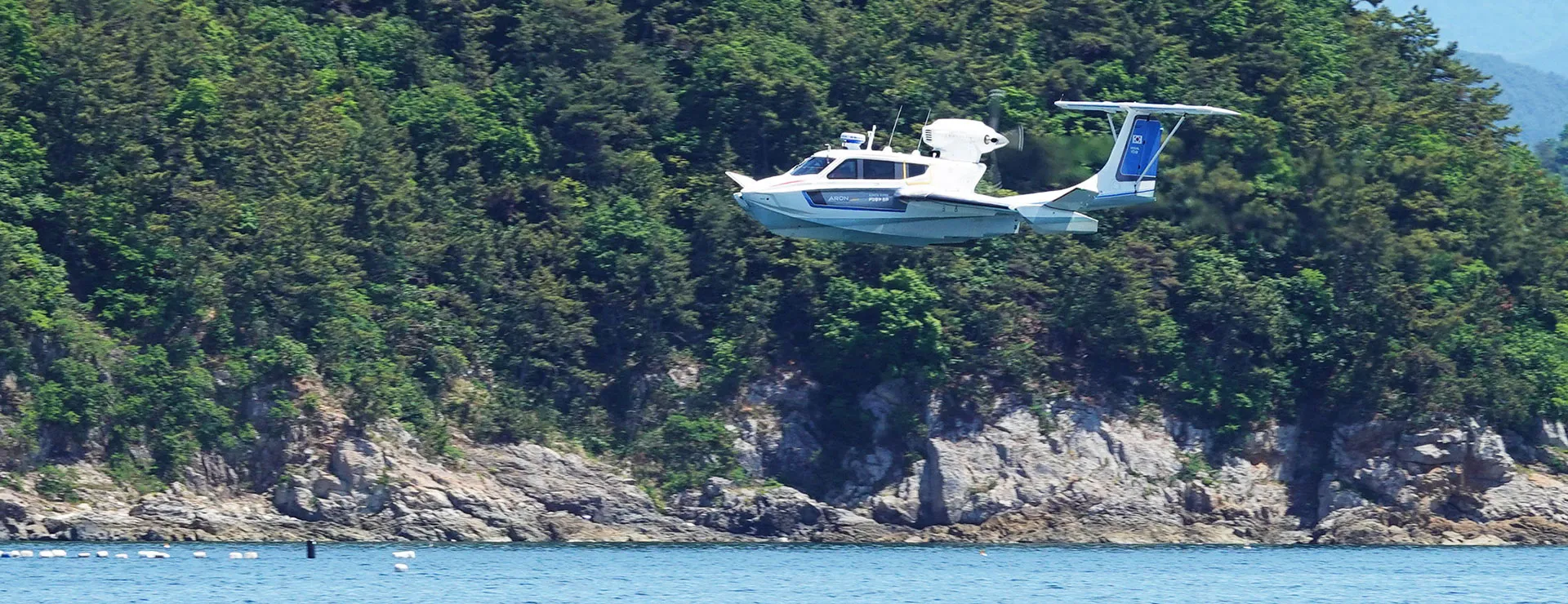

WIG Effect Mode
- Cruising Speed: 97~107 Knots(180~200km/h)
- Max. Speed: 135knots(250km/h)
- Increased fuel efficiency

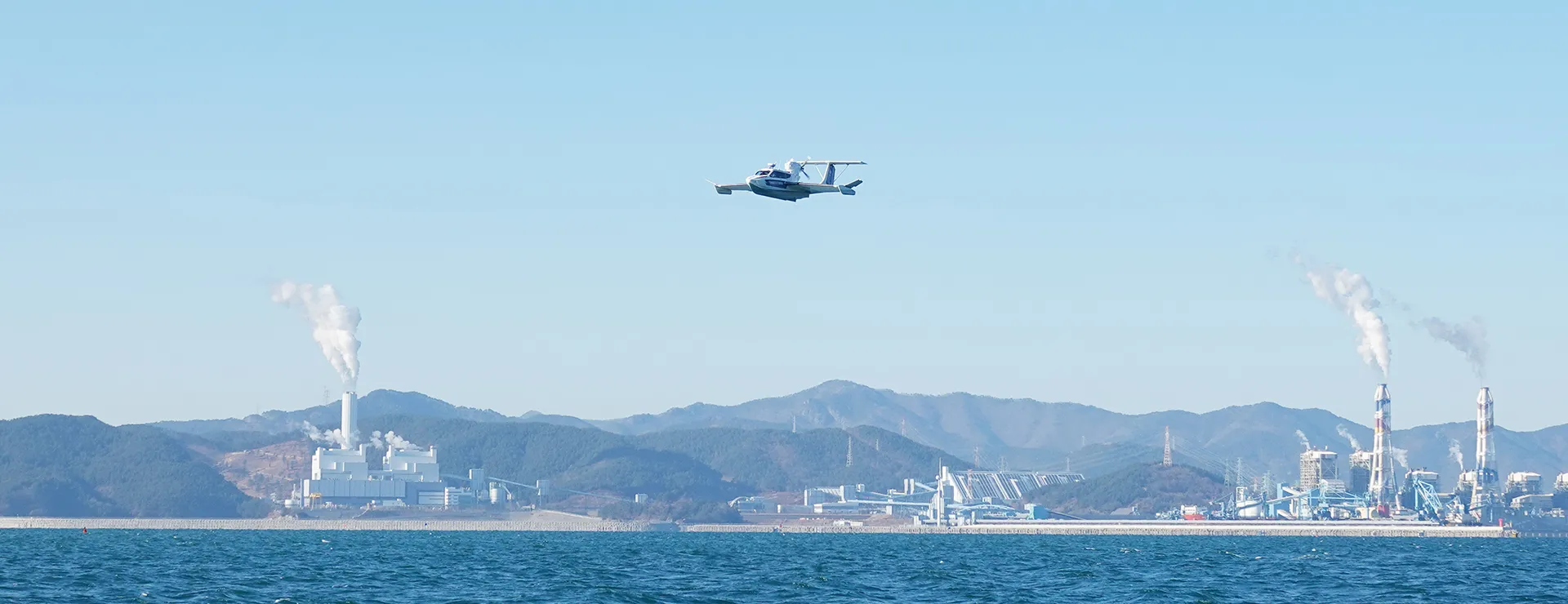

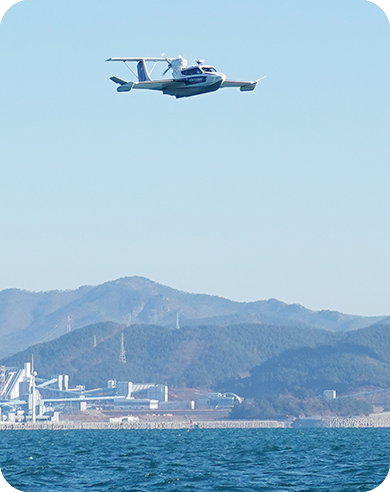

Flight Performance
- Max. Flight Altitude: 150m (IMO Guidelines)
- Cruising Range: 350nm(650km)
- Aircraft level riding comfort and safety
Strengths
New Ocean Mobility
Competitive transport in the maritime environment
Economy
Excellent fuel efficiency compared to ships and aircraft of the same class
WIG craft can travel the same distance as helicopters and boats of the same class by using 50% and 20~30% less fuel, respectively, as it utilises Wing in Ground effect. WIG craft requires minimum infrastructure, such as a portable floating pontoon for embarkation and loading, making it more cost-effective than other forms of transportation.
Comfort and Safety
Optimized for low-altitude operation
WIG craft offers a comfortable ride without sickness and vibration as
it cruises over the surface of the water. In the unlikely event of engine failure, it can safely land on the water. It is hard to capsize due to its trimaran design.
Low Operation and Management Cost
Composite Materials/Minimum Moving Parts
The hull, made of advanced composite material, does not corrode, ,and the number of moving parts are minimized by simple design, lowering maintenance costs. After a daily operation, a simple washdown is required. According to the manufacturers’ manual, the engine and propeller should be checked periodically.
Convenience

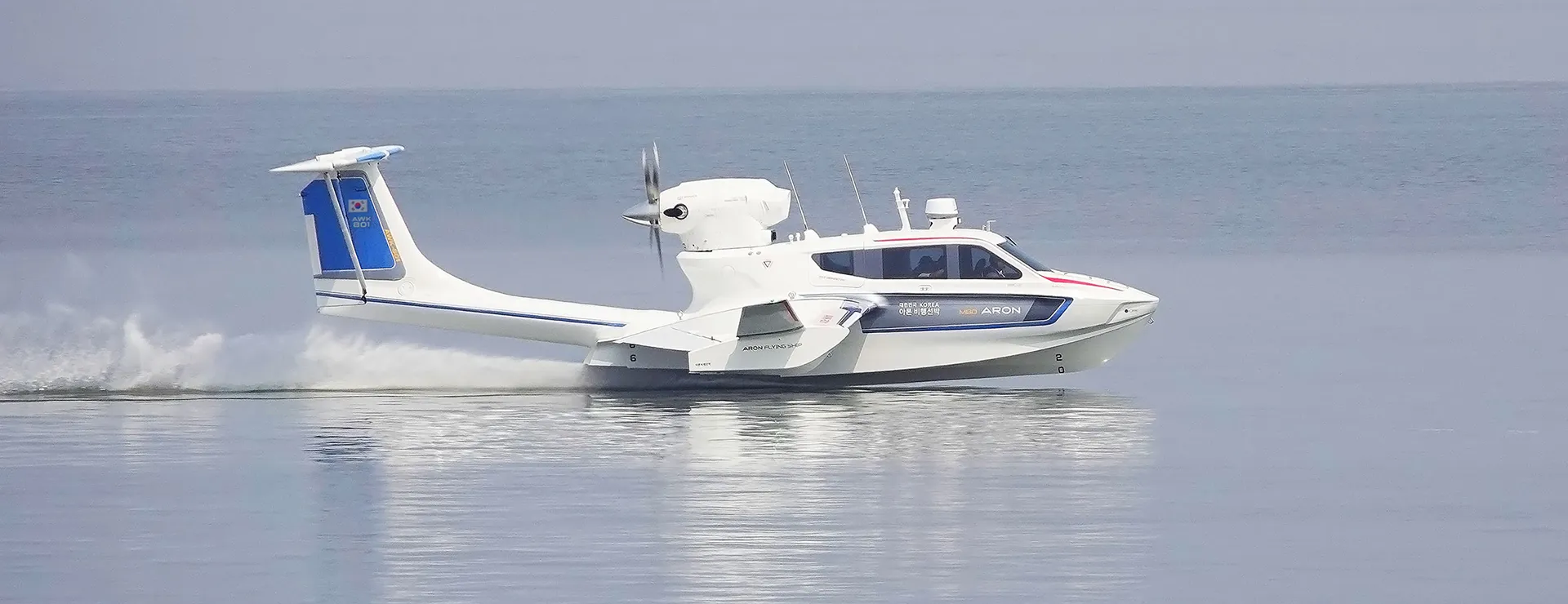

Operational Convenience

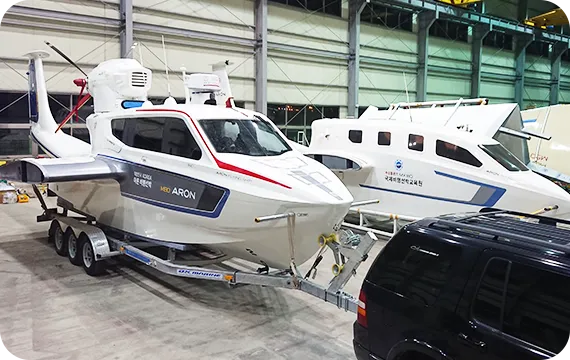

Compact Storage

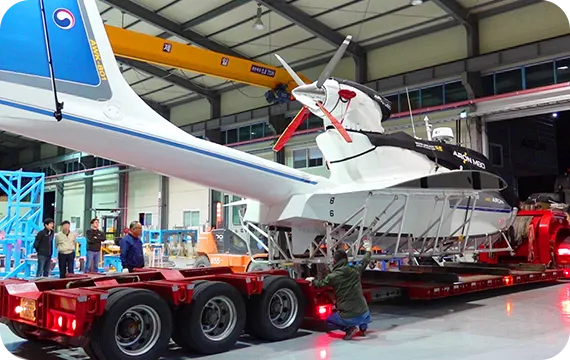

trailer Transport

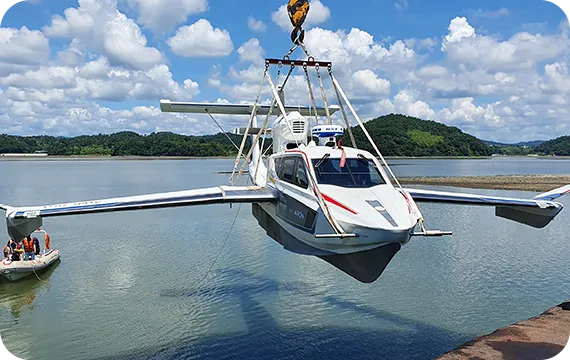

Easy Launching

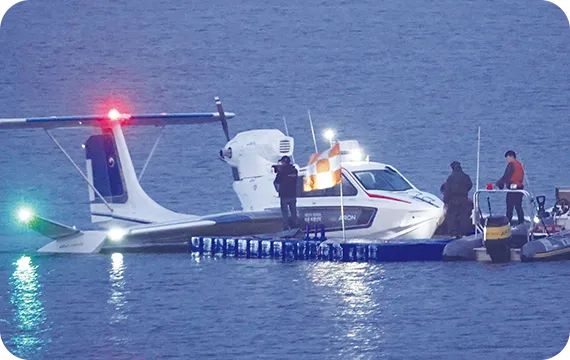

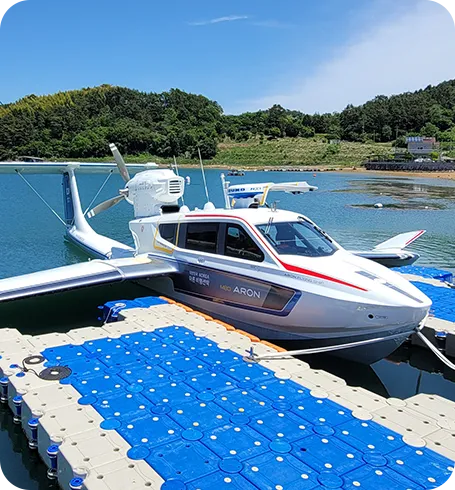

Simple Mooring

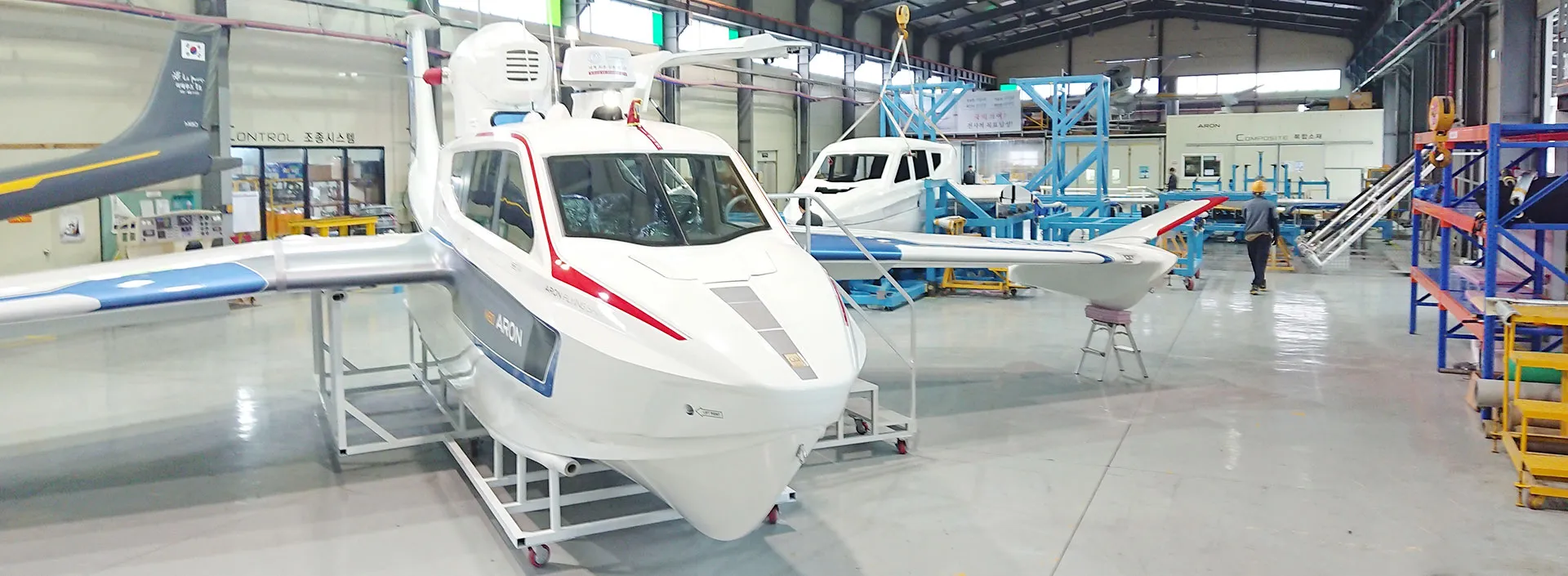

ARON Technology
Aron’s Proprietary Technology
We make a ship fly.
Aron's Differentiated Technology

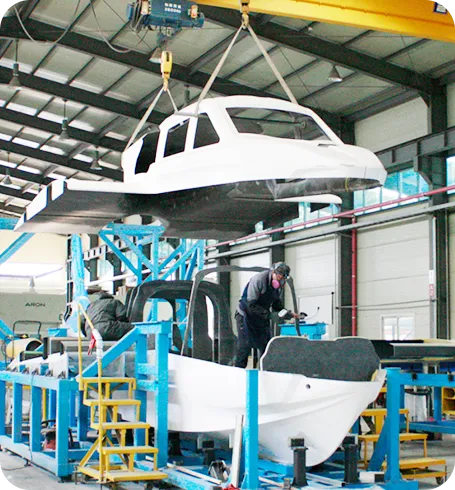

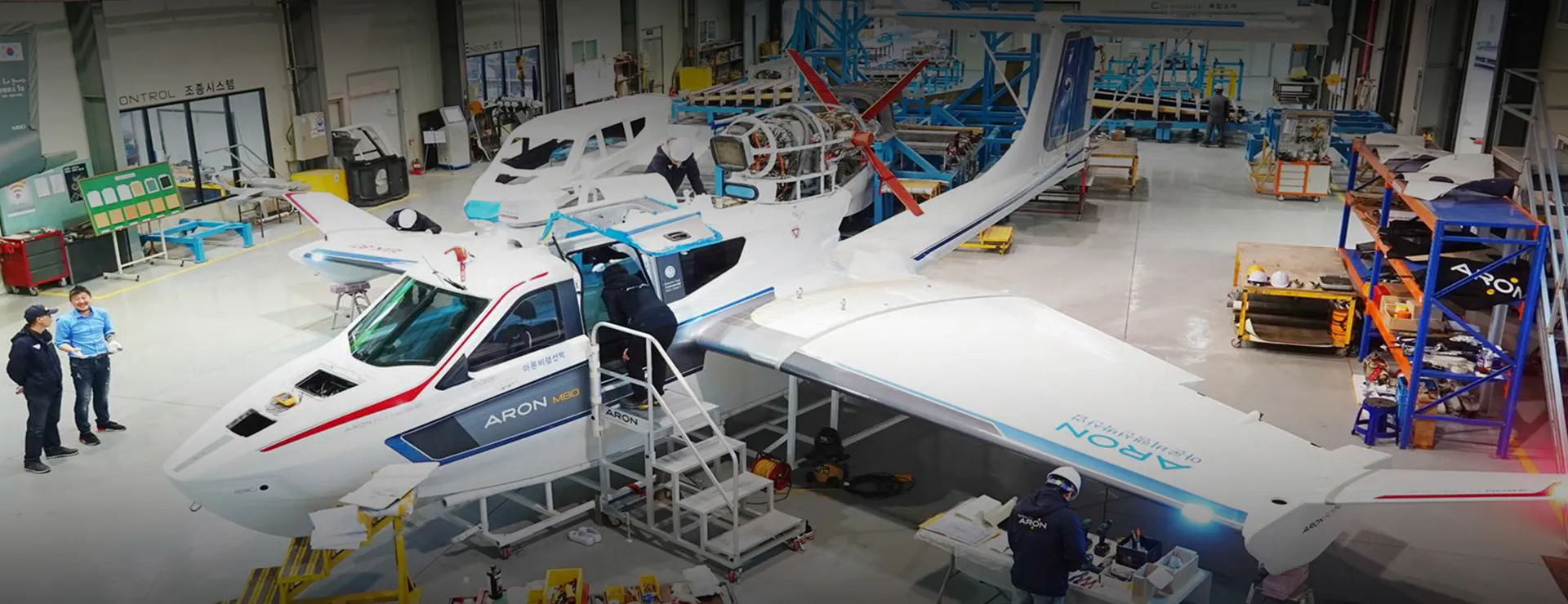

Design, Analysis, Production, System Integration, Test & Evaluation
- KR Certification and Manufacturing Method Approval

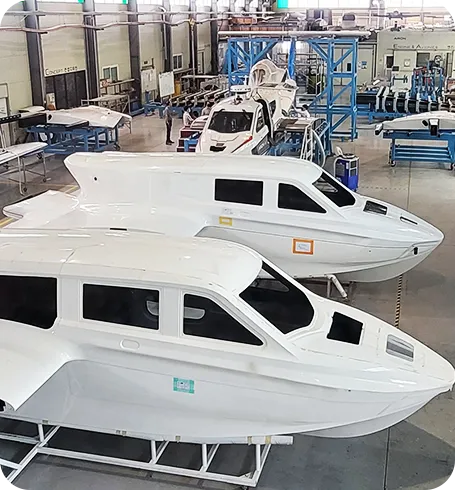

- Highly Durable Composite Hull
- 120 kinds/ 235 pieces of Production Molds
World Leader in WIG Technology
National Core Technology Company
Aron was nominated as a National Core Technology Company by the Ministry of Trade, Industry and Energy (Notice No.2012-13) in recognition of its high ,value-added WIG technology and system design.
Low Operation and Management Cost
Composite Materials/Minimum Moving Parts
The hull, made of advanced composite material, does not corrode, ,and the number of moving parts are minimized by simple design, lowering maintenance costs. After a daily operation, a simple washdown is required. According to the manufacturers’ manual, the engine and propeller should be checked periodically.
We make a Ship Fly

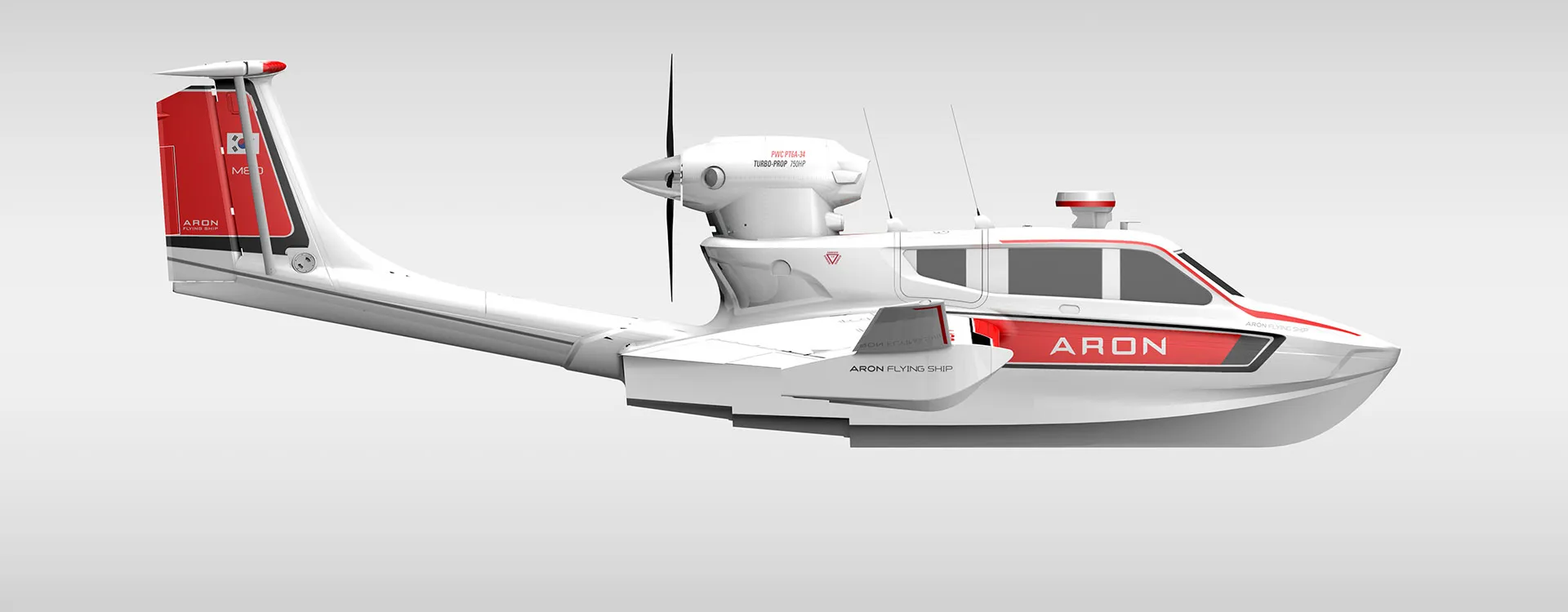

ARON M80 Main Specifications
Key specs
| ITEM | Specifications |
|---|---|
| Dimensions ( L x W x H ) | 12.7m x 14.5m x 3.9m |
| Turboprop Engine | 750 HP, PT6A-34 |
| MTOW(Max. Take-off Weight) | 9,479lb (4,300kg) |
| Useful Load | 2,623lb (1,190kg) |
| Seats | up to 8 |
| Performance | Specifications |
|---|---|
| Cruising Range | 350nm(650km) [WIG Effect Mode] |
| Max. Speed | 135knots (250km/h) |
| Cruising Speed | 97~107knots (180~200km/h) |
| Taxing Speed | 1~54knots (~100km/h) |
| Max. wave height (for take-off & landing) | 5.9ft (1.8m) |
| Max. Flight altitude | ~ 492ft (150m) [IMO Regulation] |
| Climb Rate | 13ft (4m)/sec |
Commercial

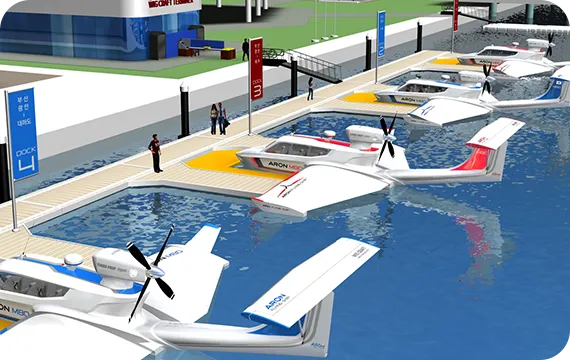

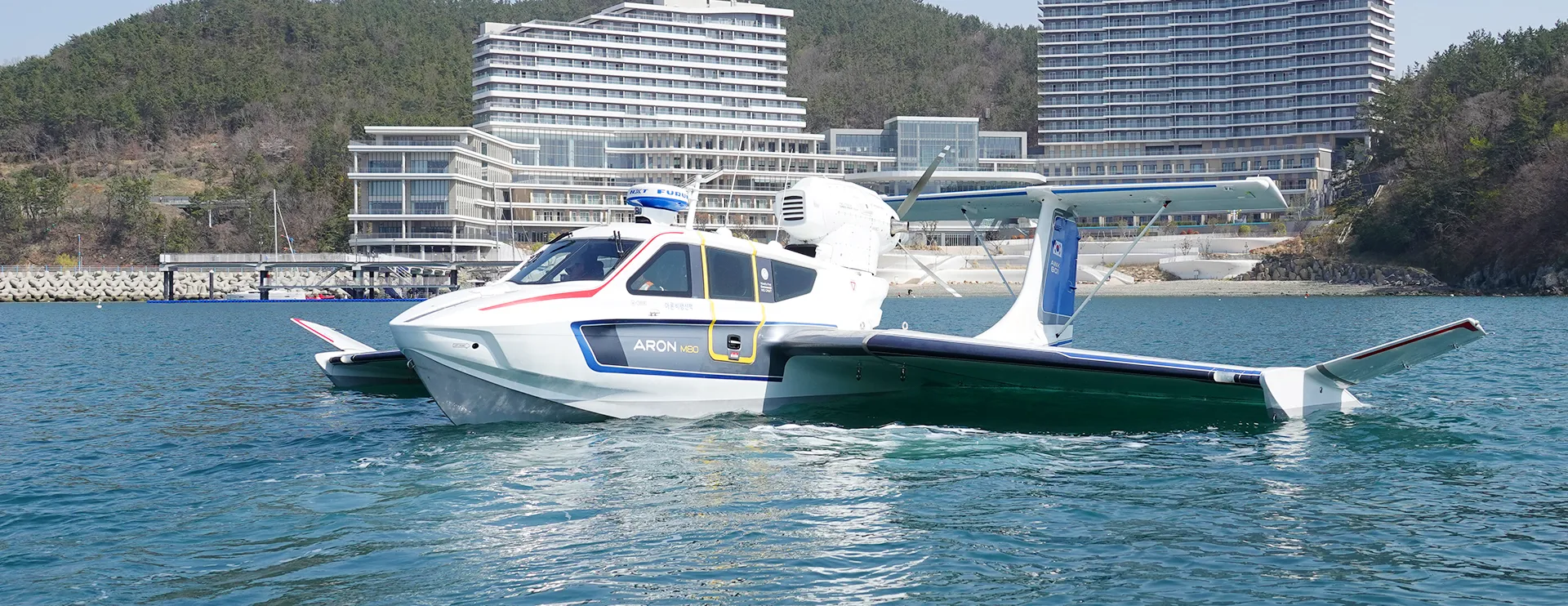

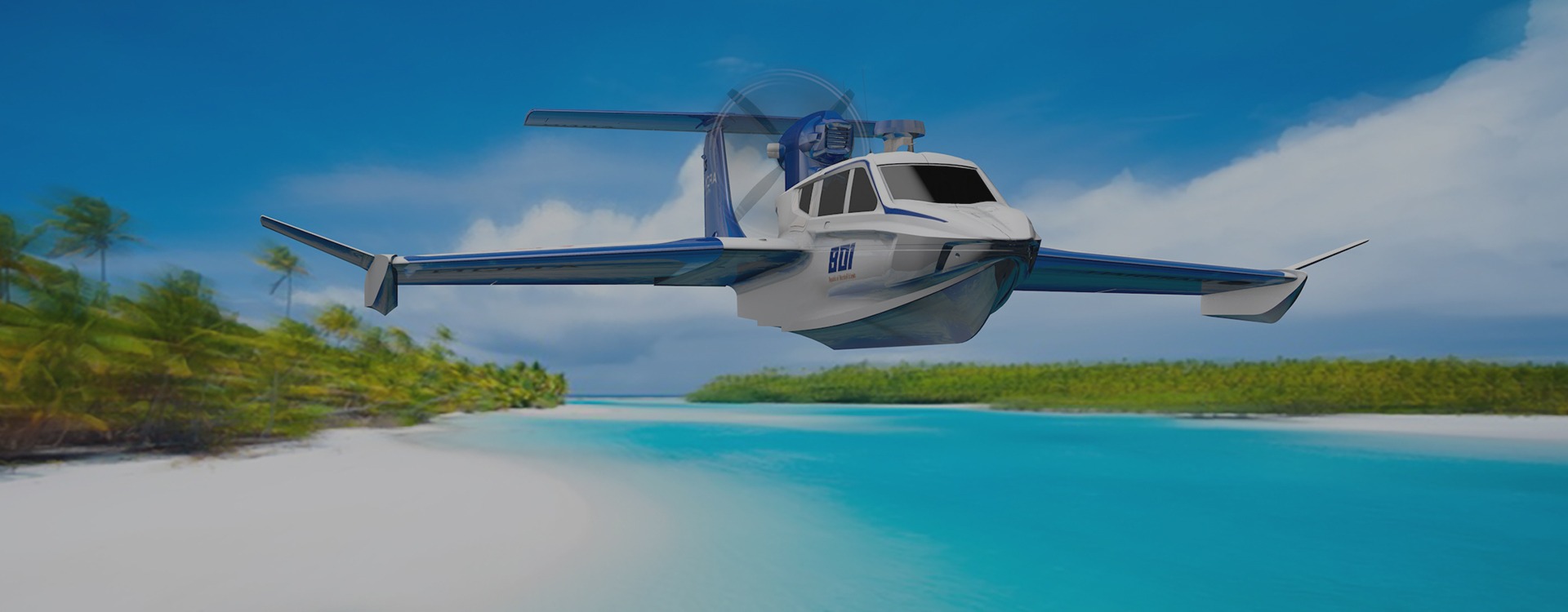

Passenger Transport/ Marine Tourism
Aron’s WIG craft is an ideal vessel for passenger transport and marine tourism due to its speed and low operating costs. WIG craft provides a fast and comfortable alternative to other forms of maritime transport.

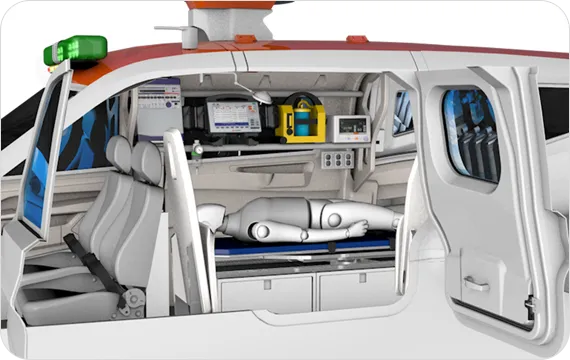

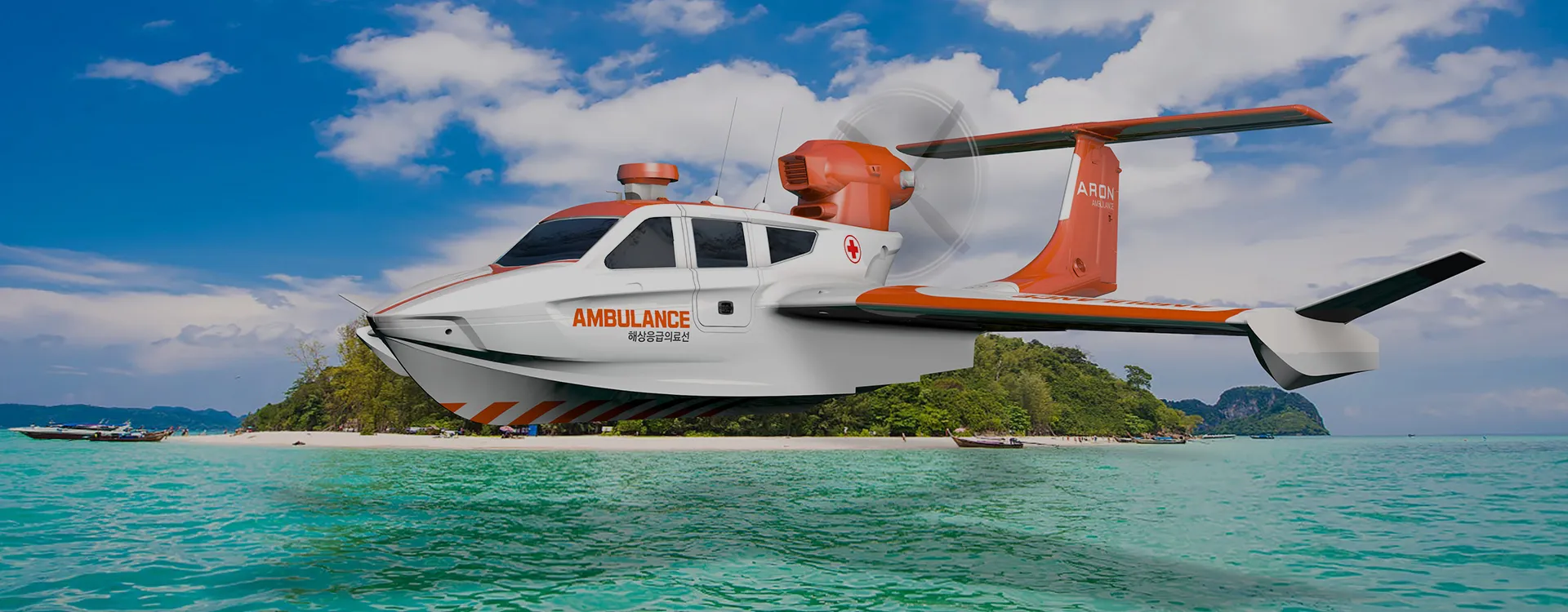

Ambulance Application

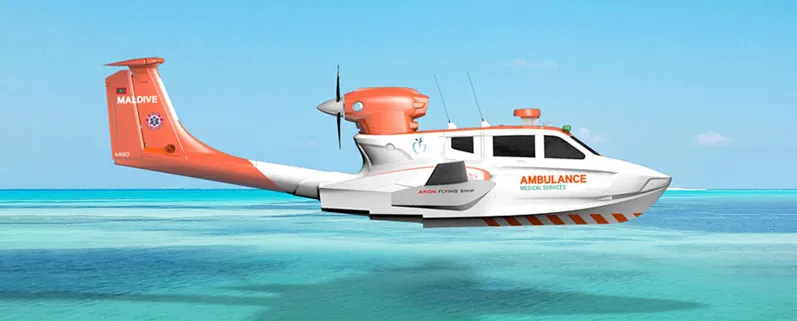

WIG Sea Ambulance

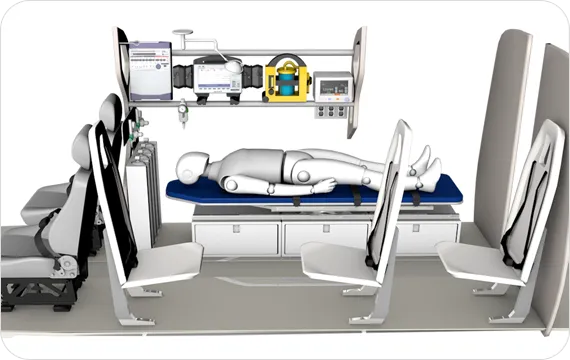

Rapid Response: Designed to quickly respond to emergencies on the water, ensuring help arrives within the critical window. Critical Care Onboard: The WIG Sea Ambulance provides vital medical care, giving severe trauma patients a better chance of survival. Unmatched Speed: Capable of covering 100 kilometers in just 30 minutes, the WIG Sea Ambulance delivers emergency services to remote and challenging environments.

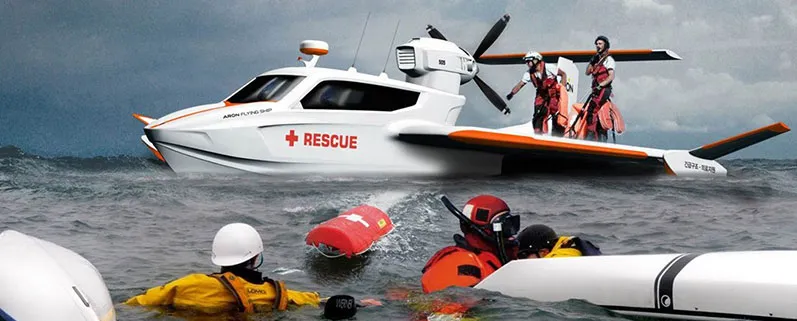

Rescue

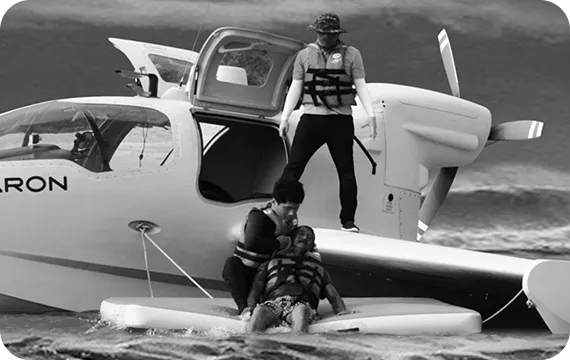

Search and Rescue
Due to its speed and range coupled with an ability to alight on waves up to 1.8m, the M80 is an ideal first responder for search and rescue missions. M80 can arrive at the accident site within golden time to commence rescue operation. Utilizing its wide wings and onboard inflatables, it can keep up to 50 people alive until help arrives.

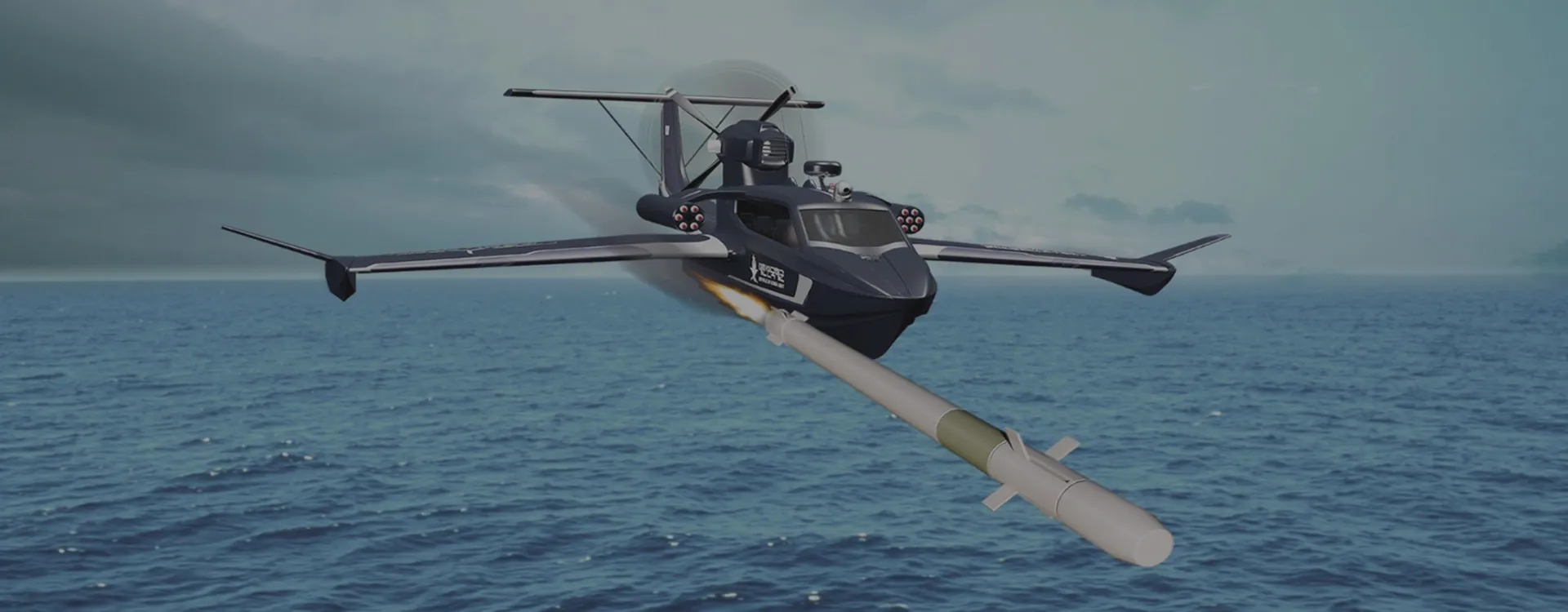

Military
Navy / Marine Corps

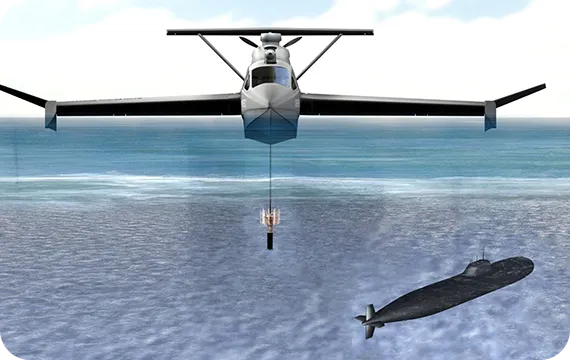

Patrol / Reconnaissance / Special Operation / Anti-Submarine Warfare M80 is an ideal platform to perform littoral patrol, reconnaissance, and special operations due to its speed, range, and low RCS. It can substitute costly ASW helicopters for anti-submarine warfare missions in littoral water when equipped with a light dipping sonar.

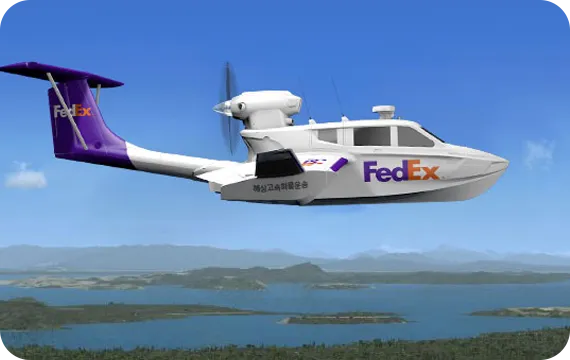

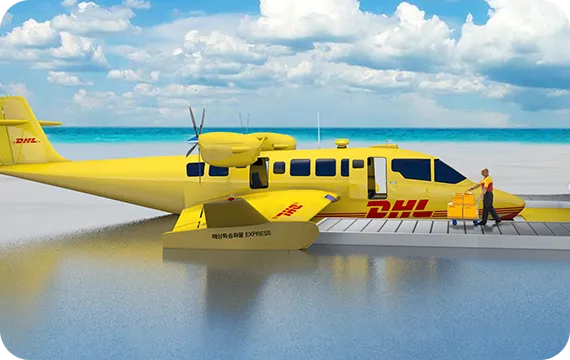

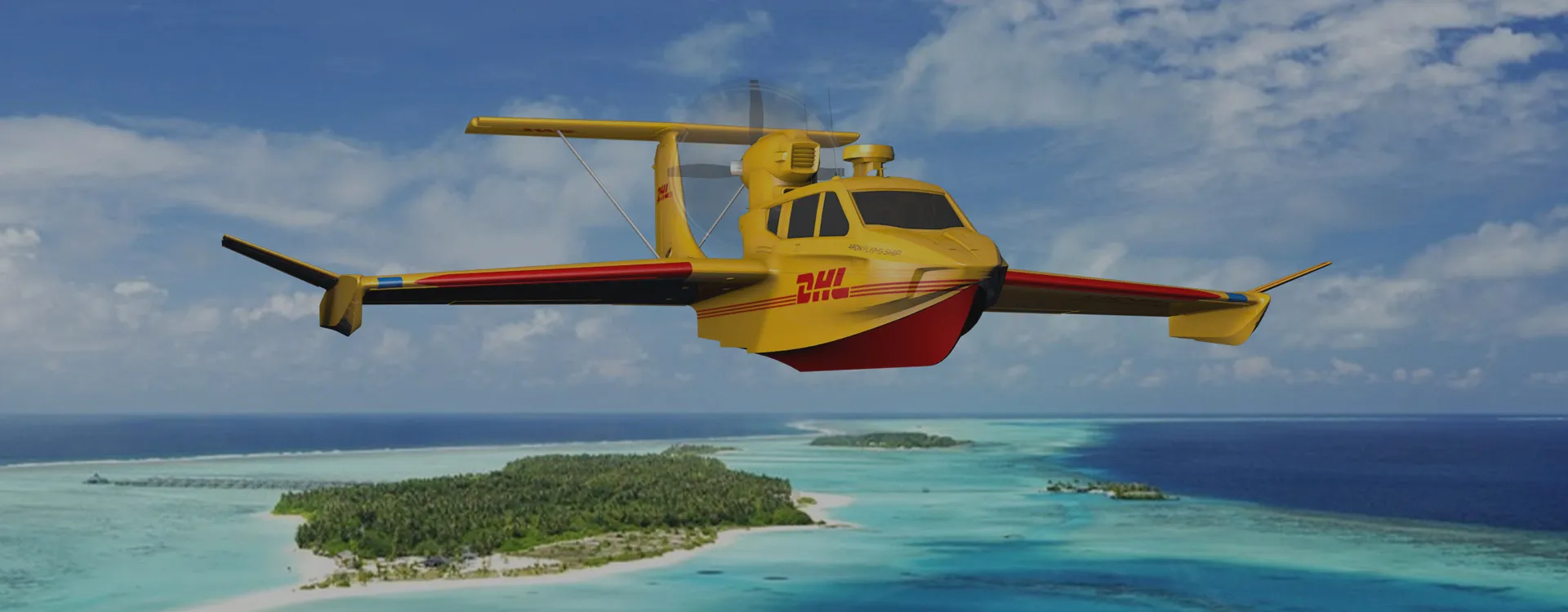

Express Cargo
Cargo / Offshore Logistics
Express Cargo / Offshore Logistics to serve islands, vessels at sea and offshore plants. WIG craft’s speed and range will allow fast parcel and mail delivery to remote islands. It will offer an alternative to other modes of transport in offshore support.
